Clamshell Socket
Compact & Efficient Solution

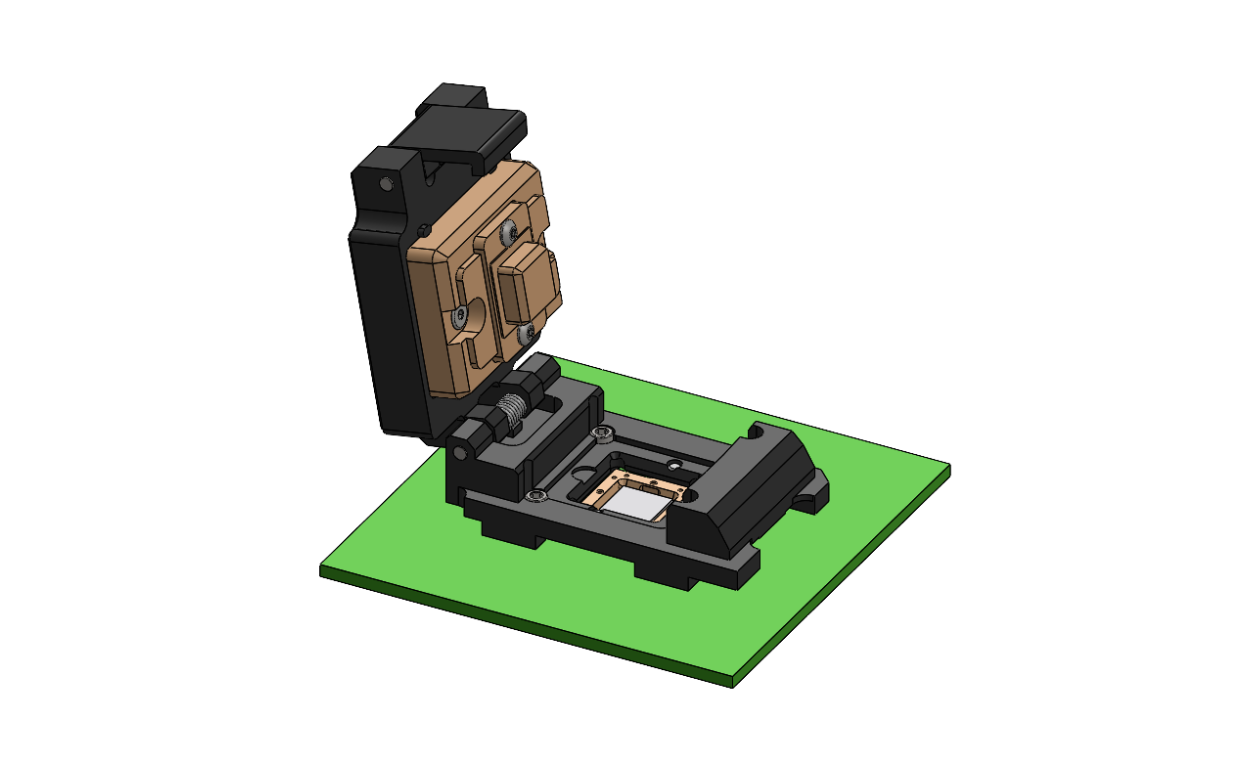

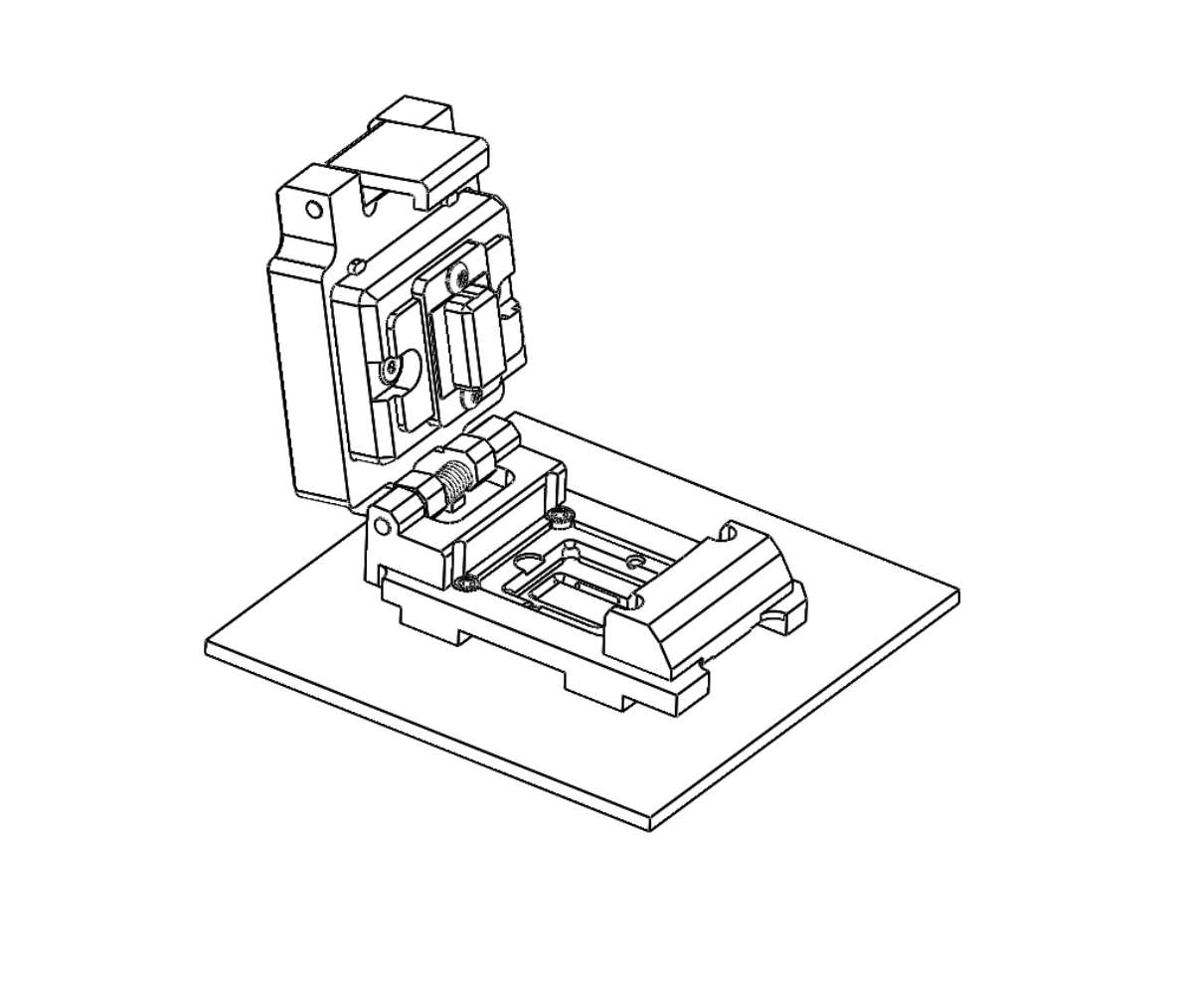

This spring-loaded, latching Clamshell Socket [F01] is a compact and efficient solution designed for small-device test, OEM, and burn-in applications. The spring-loaded hinge enables quick and easy opening of the socket cover, improving handling and throughput, while supporting devices up to 10x10mm and accommodating common package types such as LGA, QFN, BGA, and Copper Pillar. Underside pockets allow clearance for small PCB components within the socket area, and optional machined channels can be added for RF trace clearance. Standard configurations support device sizes up to 6x6mm, 8x8mm, and 10x10mm, with a socket footprint of 36mm x 25mm and height ranging from 17–43mm. Each socket includes a contactor/alignment frame with PariPoser® elastomer, a socket clamp assembly, and a support plate, delivering a reliable and space-efficient testing solution.
Specifications & Detail
- Spring-loaded, latching clamshell socket for small devices.
- For test, OEM, and burn-in applications.
- Hinge is spring loaded for quick opening of socket cover.
- For devices up to 10x10mm.
- Compatible with most device styles ( e.g. LGA, QFN, BGA, Copper Pillar).
- Underside pockets allow small components within socket area.
- Machined channels can be added to clear RF traces.
- Standard sizes:
- Up to device size 6x6mm [socket size over PCB: L=36, W=25, H=17-43]
- Up to device size 8x8mm [socket size over PCB: L=36, W=25, H=17-43]
- Up to device size 10x10mm [socket size over PCB: L=36, W=25, H=17-43]
- Socket comes with:
- Contactor/alignment frame with PariPoser® Elastomer.
- Socket clamp assembly.
- Support plate.
